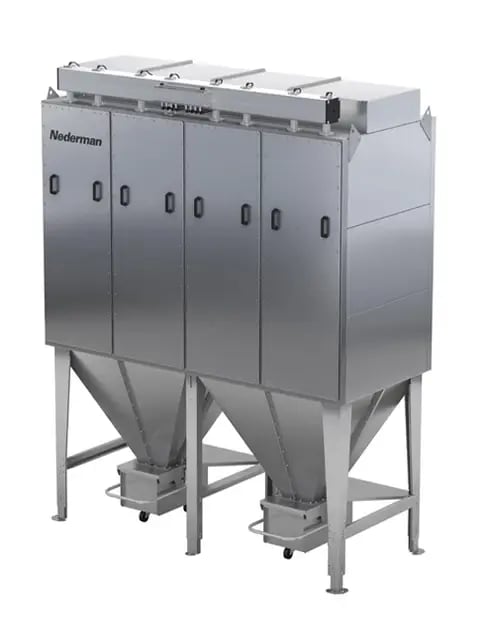

MCP cartridge filter

The dedusting system's safe and continuous functionality is an indispensable condition for constant production. Offering both safe and effective filtration and flexible installation possibilities, the MCP filter is highly competitive and is ready to meet the needs of the future.

Compact with high performance

The MCP filter has been developed in order to ensure maximum filtration efficiency with a minimal encumbrance. The filter can therefore be installed near to the place in which the dust is generated. This means less energy consumption, less piping and, ultimately, lower installation costs.

Naturally, the filter can also be installed outdoors. Its compact design facilitates maintenance at floor level, thus often rendering walkways and other structures unnecessary.

Filter characteristics

MCP filters can be produced with modules of 2, 4, 6 or 8 cassettes (32 to 464 m²), with either standard (L) or long (A) version cartridges, and with expandable capacities of up to 28.000 m³/h.
Integrated fans from 3kW to 18.5kW positioned above the filter.
High-efficiency, automatic, counterflow, compressed air cleaning system.
Wide range of filter media. Wide range of accessories, including fans, support structures, walkways, valves, dust collection bins, silencers, protective elements for abrasive dusts and fast-closing inspection doors.
3 main types:
- Filter with open base flange for "silo type" connection
- Filter with hopper and flange
- Filter with hopper and collection bin.
Possibility of indoor and outdoor installation.

The MCP series filter is also produced in an ATEX certified version for dusts with an explosion hazard class rating of St-1, St-2 and St-3.

Download PDF

MCP Product leaflet

Download

MCP EX Product leaflet

Download

Application fields

saldatura-140530174647.i206-kpUgKng-w380-h255-f1-l1-c1

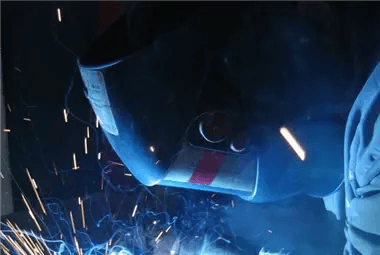

Welding

Welding is a procedure that allows to permanently connect solid parts together and realize the continuity of the material where it is applied...

taglio-laser-140530174340.i207-k5SM2eN-w380-h255-f1-l1-c1

Laser cutting

Laser cutting is a process that is subject to the production of very fine dust, which can easily be dispersed into the air and become...

taglio-plasma-140530174549.i208-kegBDm-w380-h255-f1-l1-c1

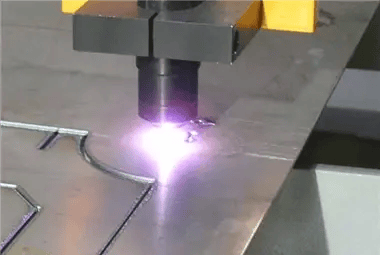

Plasma cutting

Plasma cutting is a particular cutting technique that's carried out by exploiting the energy of a gas flow. It allows ...

pulitura-metalli-140530181006.i211-k28sftw-w380-h255-f1-l1-c1

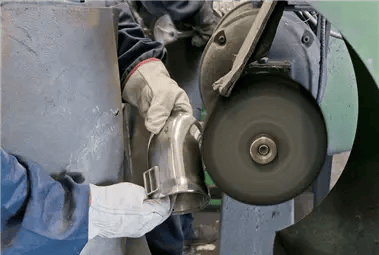

Metal cleaning and grinding

Grinding and polishing are mechanical surface finishing operations. These particular finishing operations take place...

granigliatura-140604121450.i462-kCo01Rg-w380-h255-f1-l1-c1

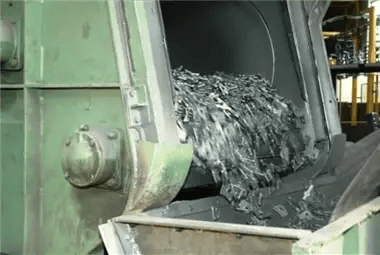

Shot blasting

Shot blasting is a method used to clean, strengthen (peen) or polish metal materials. Shot blasting is typically performed upon steel cast iron and metal...

sabbiatura-140508100539.i215-kfOtmYo-w380-h255-f1-l1-c1

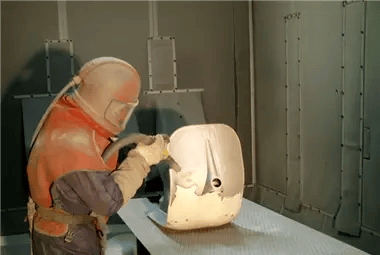

Metal sandblasting

Sandblasting is a process by which the exterior or surface portion of a material is eroded via an abrasion generated by a jet of sand...

chimico-farmaceutico-140508100720.i216-kEmglpy-w380-h255-f1-l1-c1

Chemical-Pharmaceutical

Various stages of the chemical and pharmaceutical processes generate dusts that need to be properly captured and filtered...

alimentare-2-140508105956.i225-kWiGh12-w380-h255-f1-l1-c1

Food processing

In food processing, combustible dust is a hidden but ever-present hazard. The various processes of grinding, crushing, mixing and packaging generate small particles that may appear harmless...
